EyeNext
EyeNext AOC Vision Chart
Overview

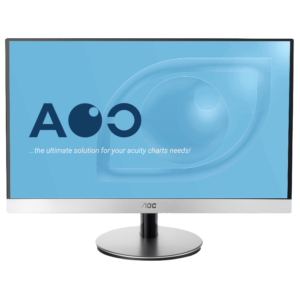

The Advanced Ophthalmic Chart (AOC) is a state-of-the-art digital far vision chart system available in multiple configurations: AOC Style, AOC Pro, and AOC Pola for fixed installation, plus AOC Mobile for portable use. Built with over 20 years of engineering excellence, AOC features a Full-HD LCD display with IPS technology, built-in Linux microcomputer for lasting reliability, and intuitive touchscreen remote control. Ideal for comprehensive eye examinations including visual acuity, refraction, contrast sensitivity, binocular testing, and driver's license assessments (Groups 1 & 2).
Key Features
Full-HD (1920 × 1080 px) IPS LCD display with 16.7M colors and LED backlight — matte finish for reduced glare
Working distance adjustable from 2–8 m in 5 cm steps with mirror option
Built-in Linux operating system — no traditional PC or OS dependencies; designed for performance and lasting reliability
8" touchscreen remote console — adjust acuity, masking, crowding, low-vision mode, and programs with simple taps
Randomised testing with wide-ranging applications from severely impaired vision (0.1/10) to hyperacuity (20/10)
Automated driver's license examination (Groups 1 & 2) — visual acuity, contrast sensitivity, twilight vision, glare sensitivity, and glare recovery time per 2006/126/CE and 2009/113/CE
Special LOW VISION and CHILD examination modes with age-appropriate presentations
Integrated LED for Maddox Rod Test
WiFi printing and Bluetooth forwarding of driving license reports and contrast sensitivity results to smartphone/PC
Multimedia capabilities — Full-HD video playback, tutorial slideshows, and entertainment animations for paediatric exams
Red-green stereo, polarised (AOC POLA), or standard viewing modes
Free software updates delivered automatically via Ethernet connection
Remote technical assistance via Ethernet connection
Available in multiple models: AOC-23/27 (Style), AOC-i24/i27 (Pro), AOC-24 POLA, and AOC Mobile (10.1" portable, battery-operated)
Designed and manufactured in Italy | Compliance: EU 2017/745 (Class I), ISO 8596-8597, CE marked | 5-year warranty*
